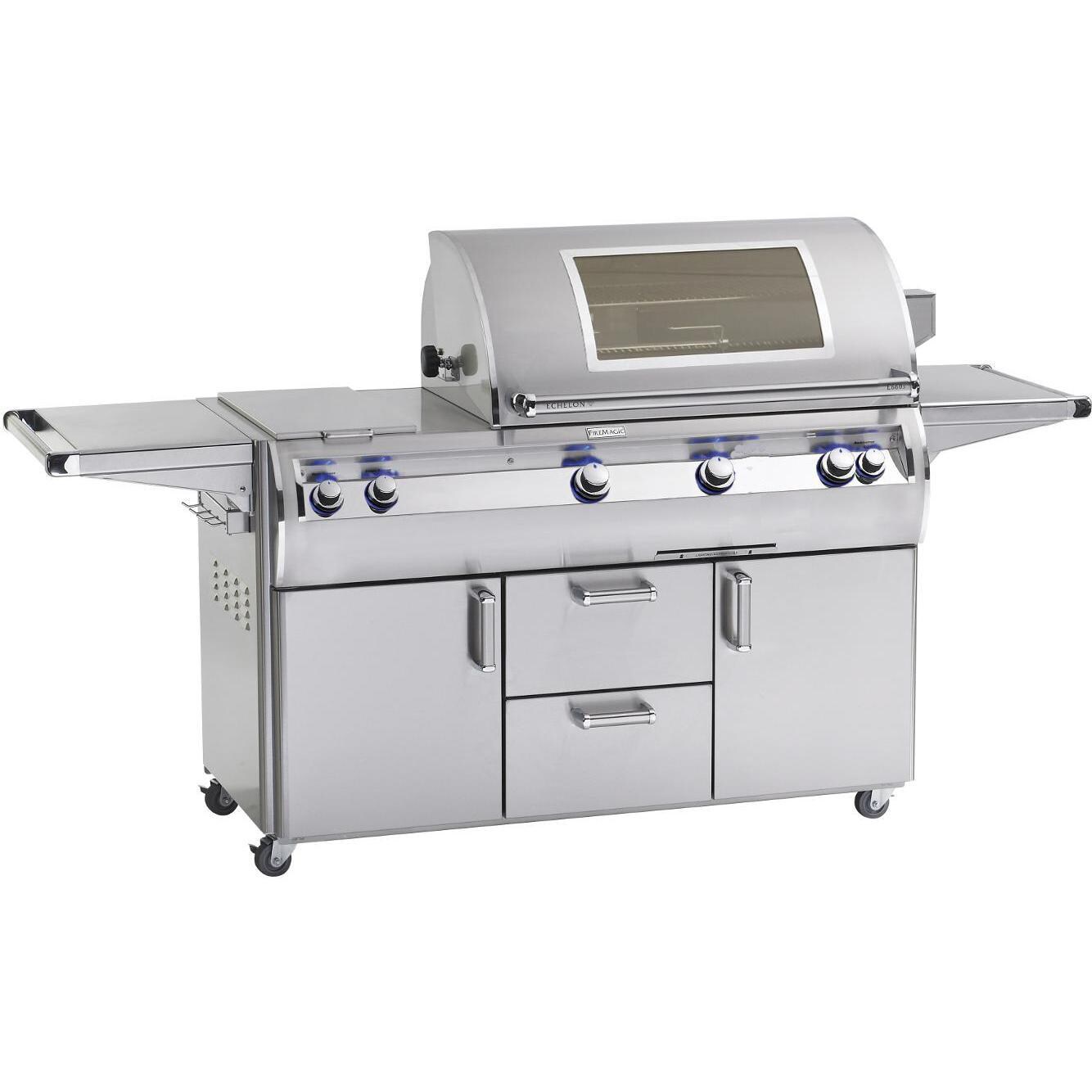

Fire Magic Echelon Diamond E660s 30-Inch Propane Gas Grill W/ One Infrared Burner, Analog Thermometer, Double Side Burner & Magic View Window - E660s-4LAP-71-W
Product Info Guide
Recommended AccessoriesBack to Top
- Unique 5 Ways to Cook system allows you to grill, sear, smoke, rotis and even charcoal grill
- Large cooking area holds more burgers than competitor's next size up, while taking up less counter space
- Analog thermometer allows you to monitor the temperature of the grill for more precise grilling

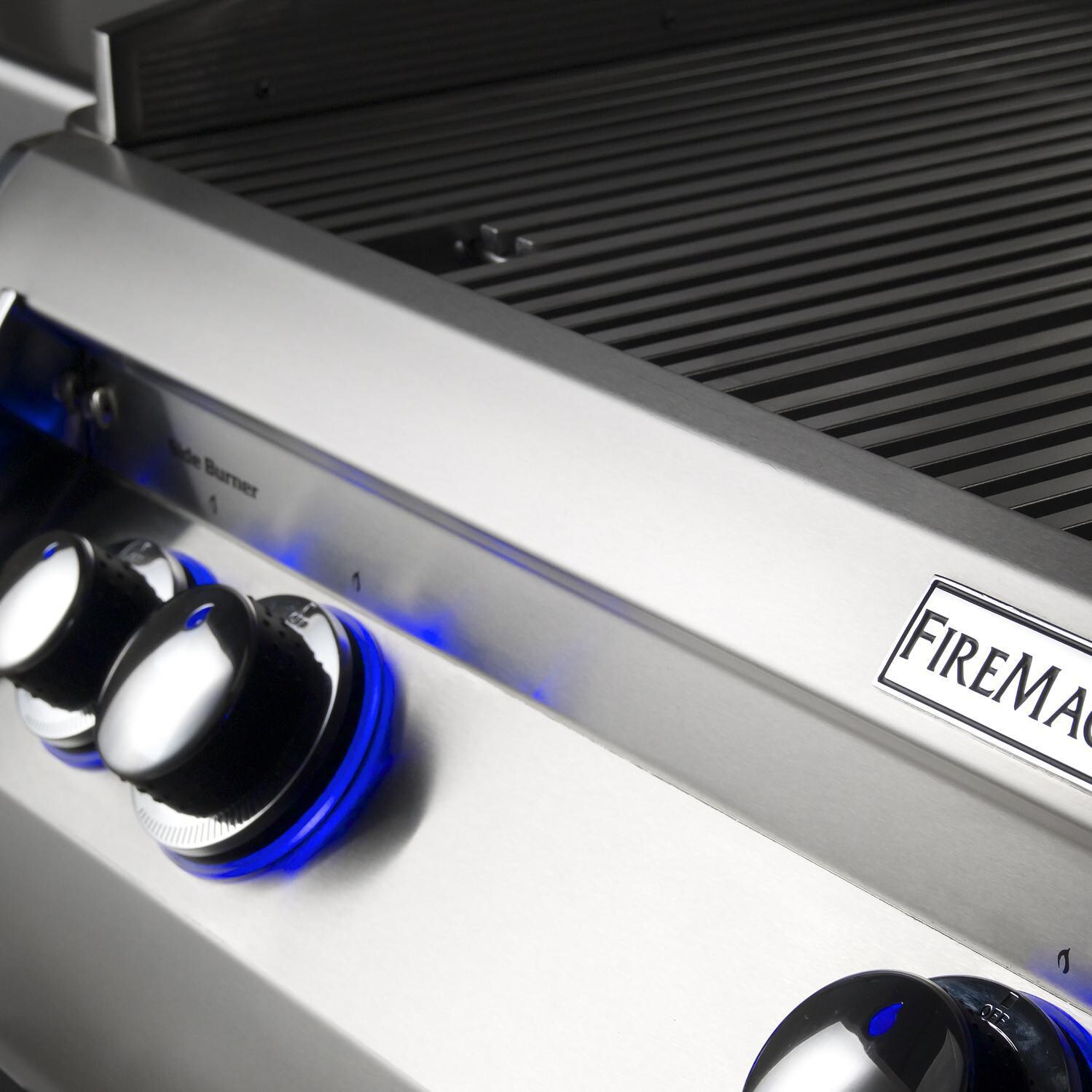

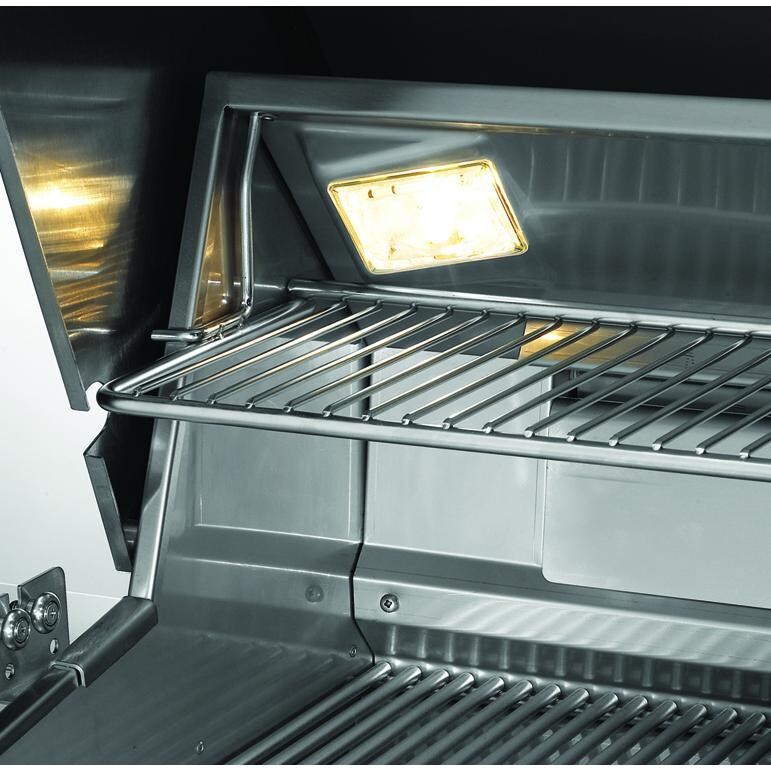

- Blue back lit LED safety knobs and angled internal halogen lights for night time grilling in style
- Fire Magic grills are proudly made in the USA and have been since 1937

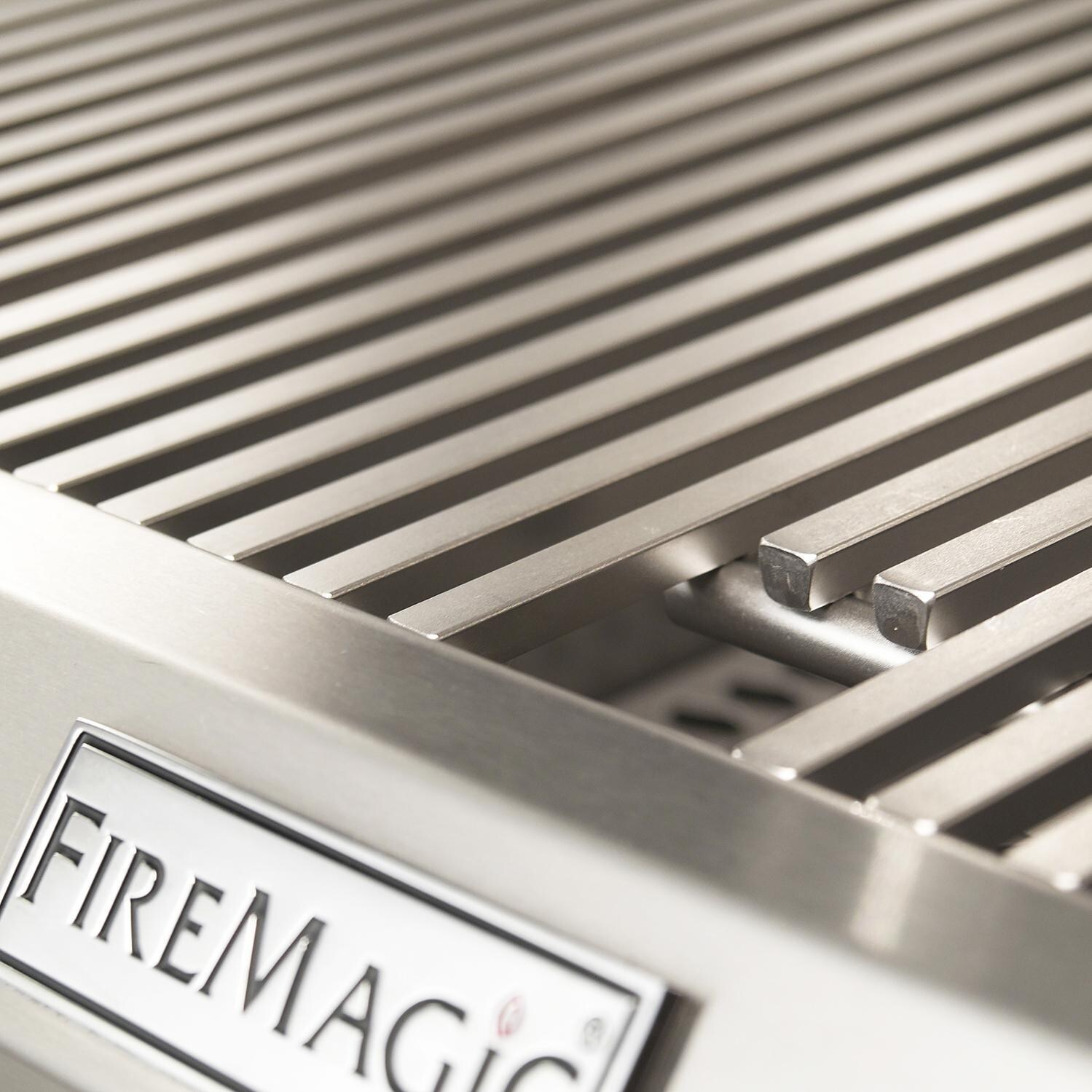

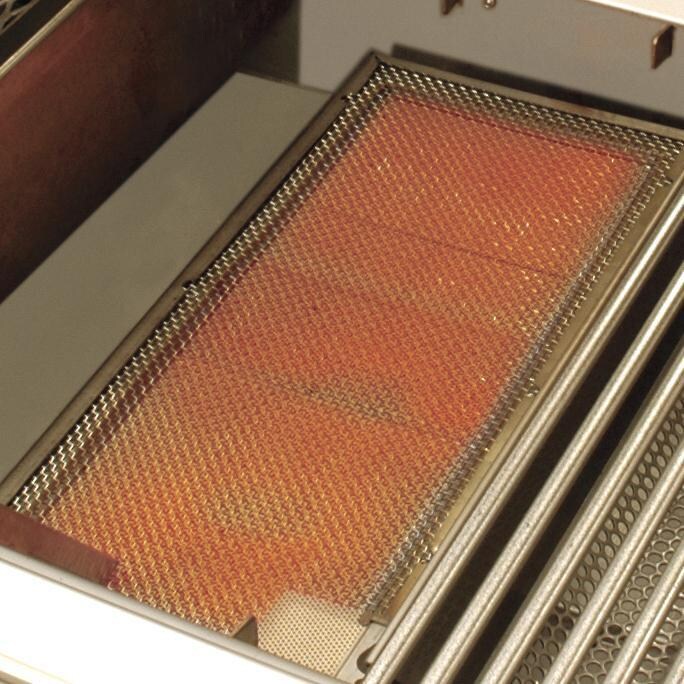

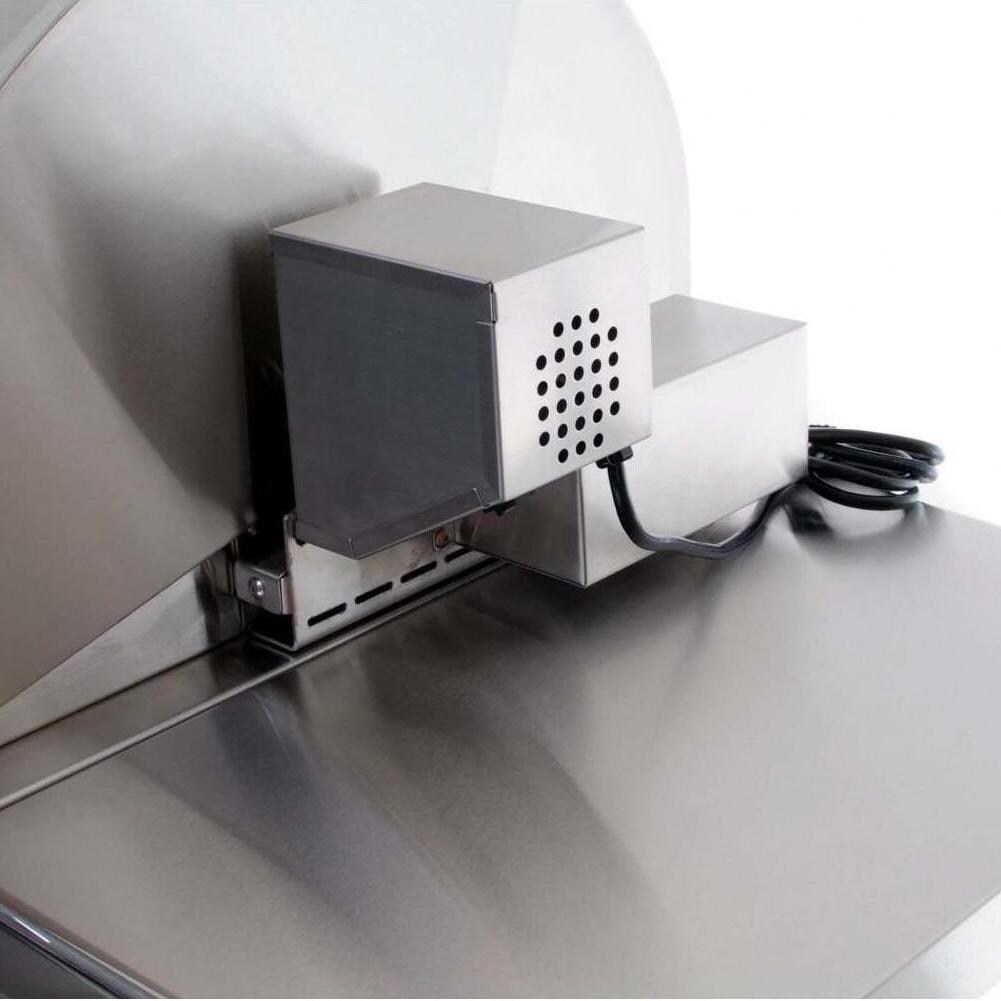

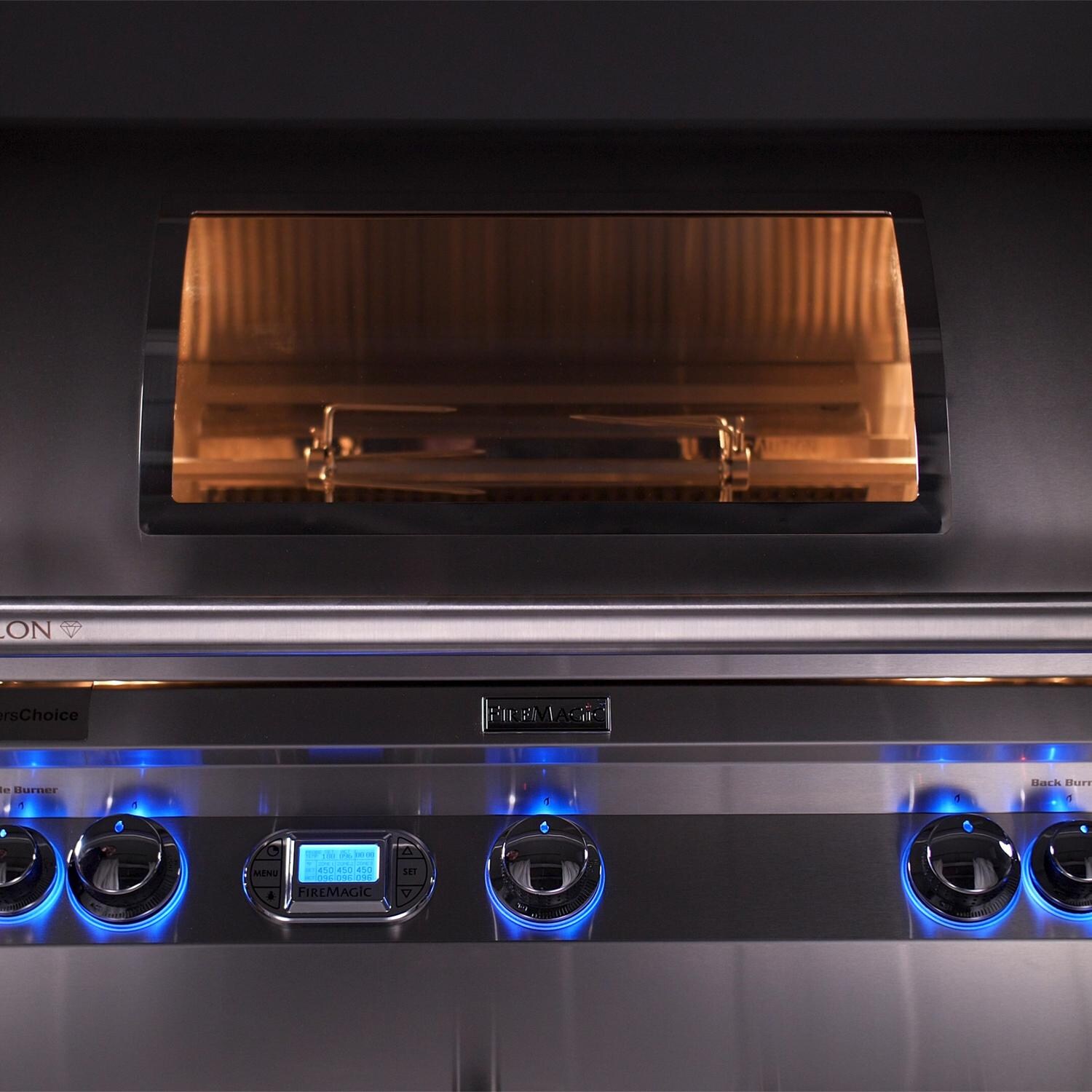

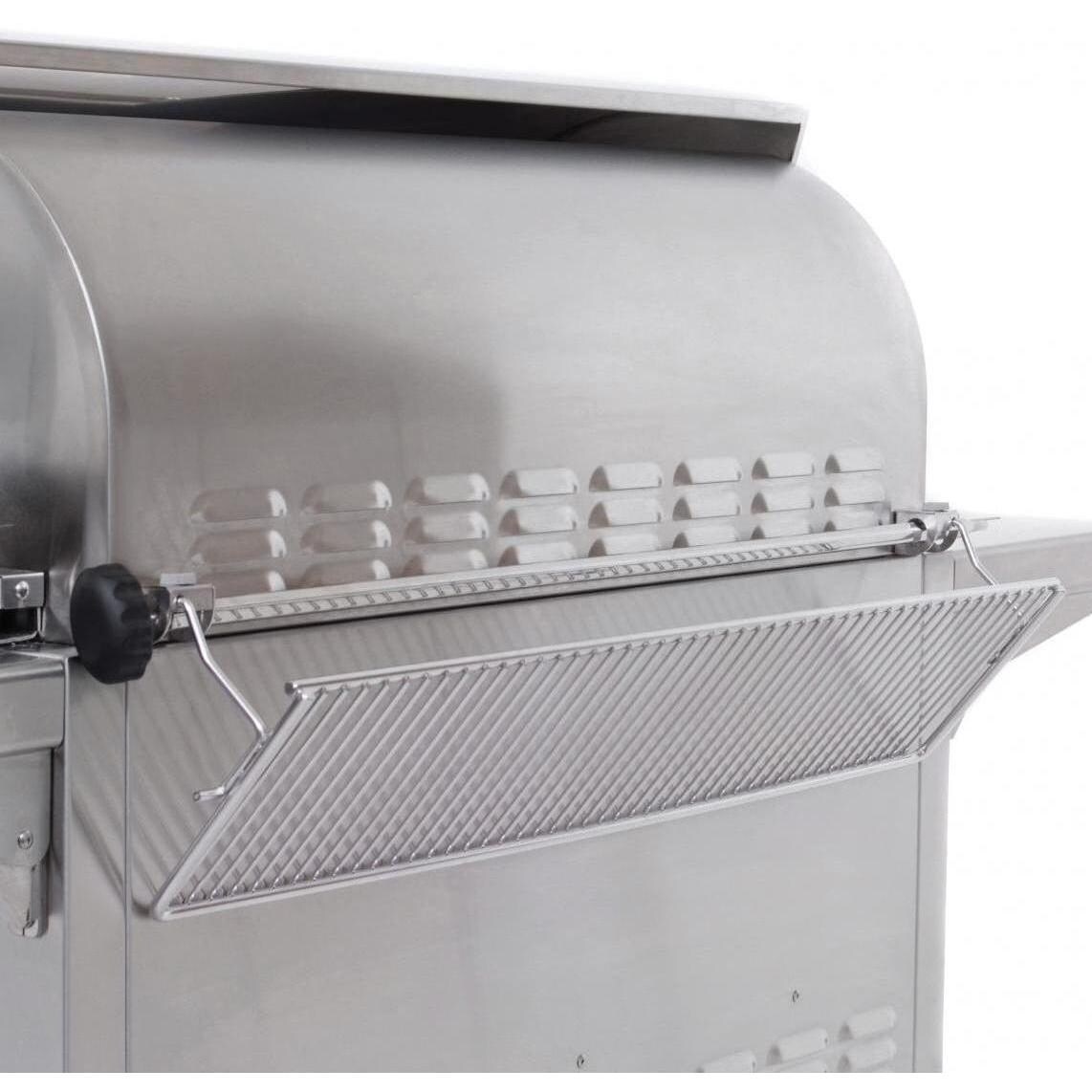

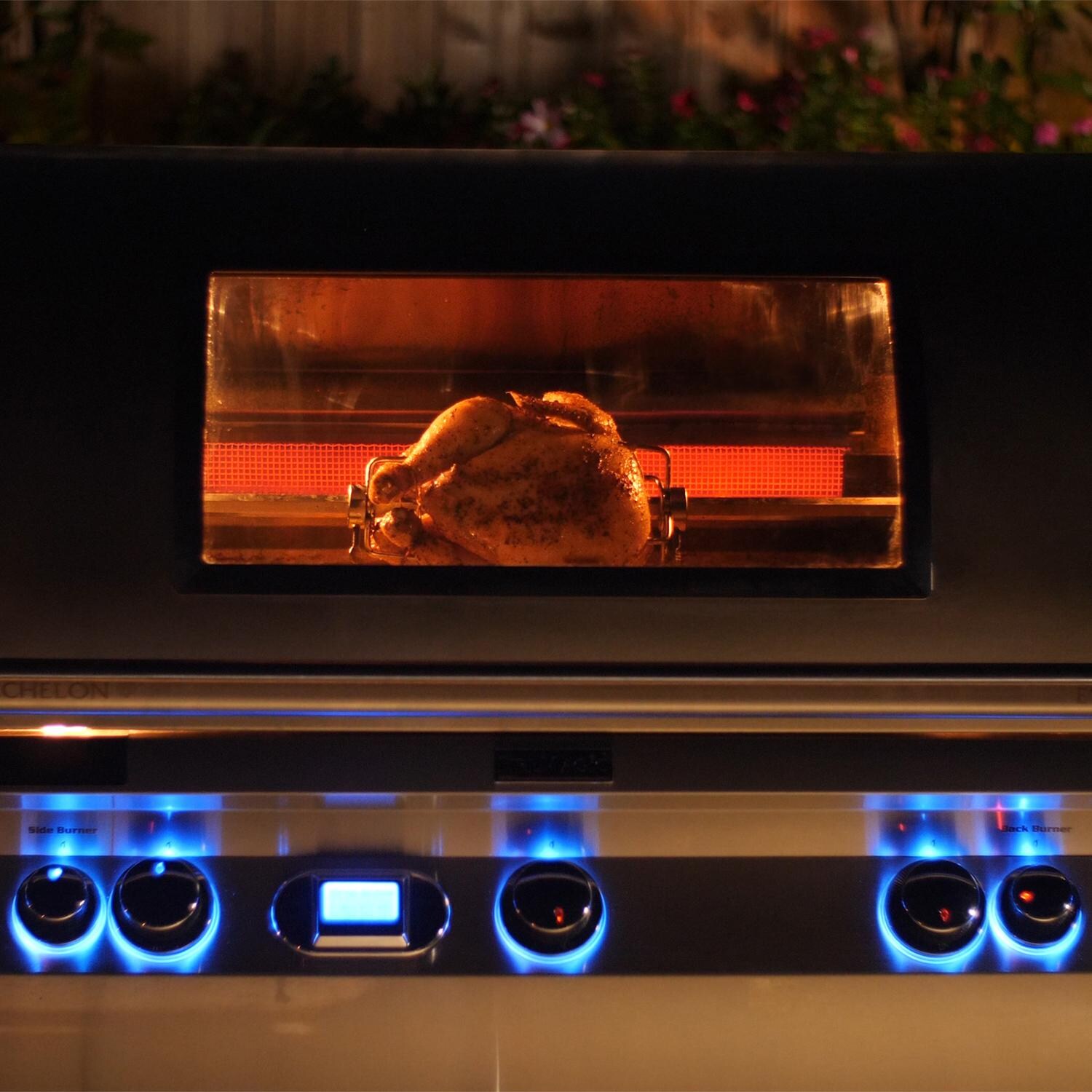

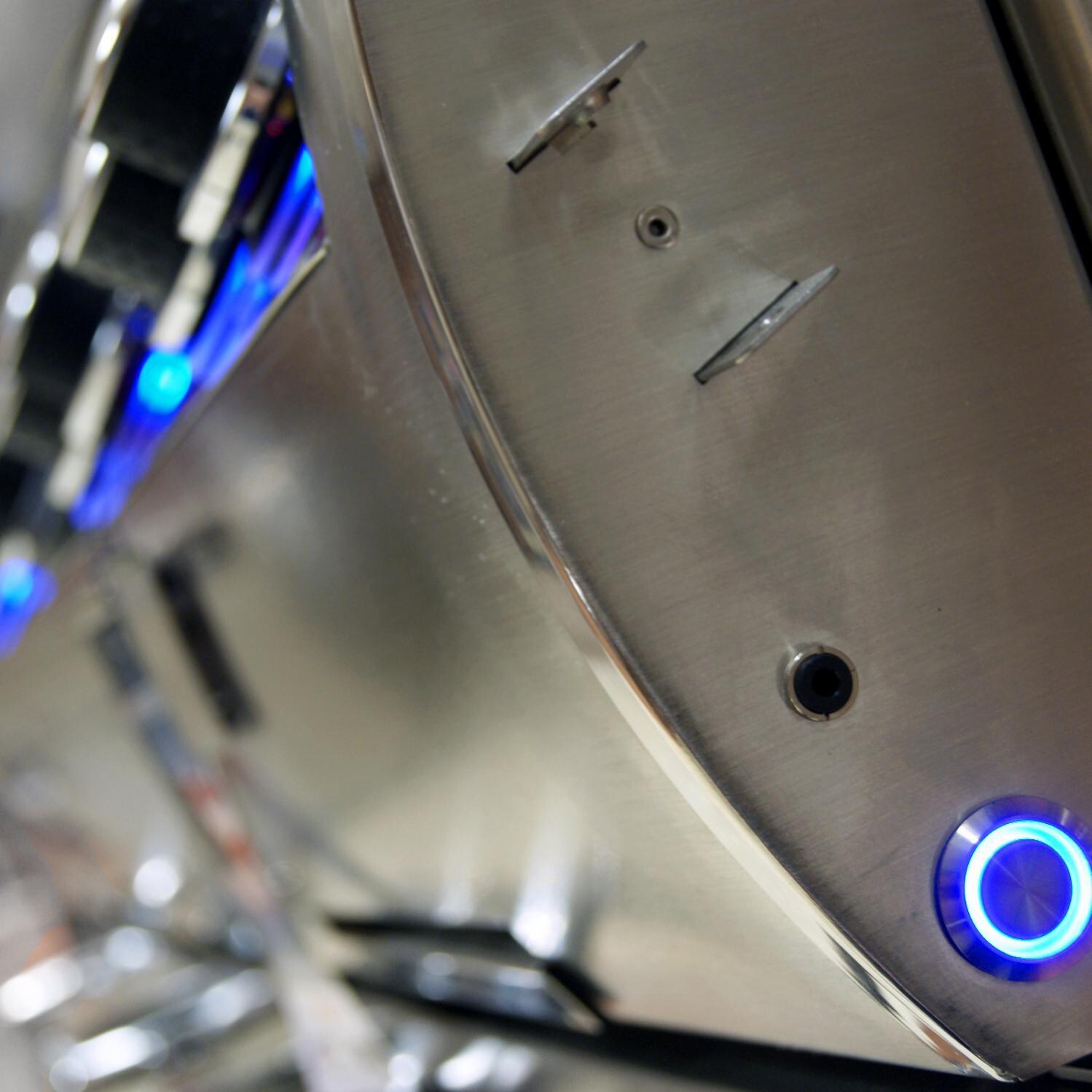

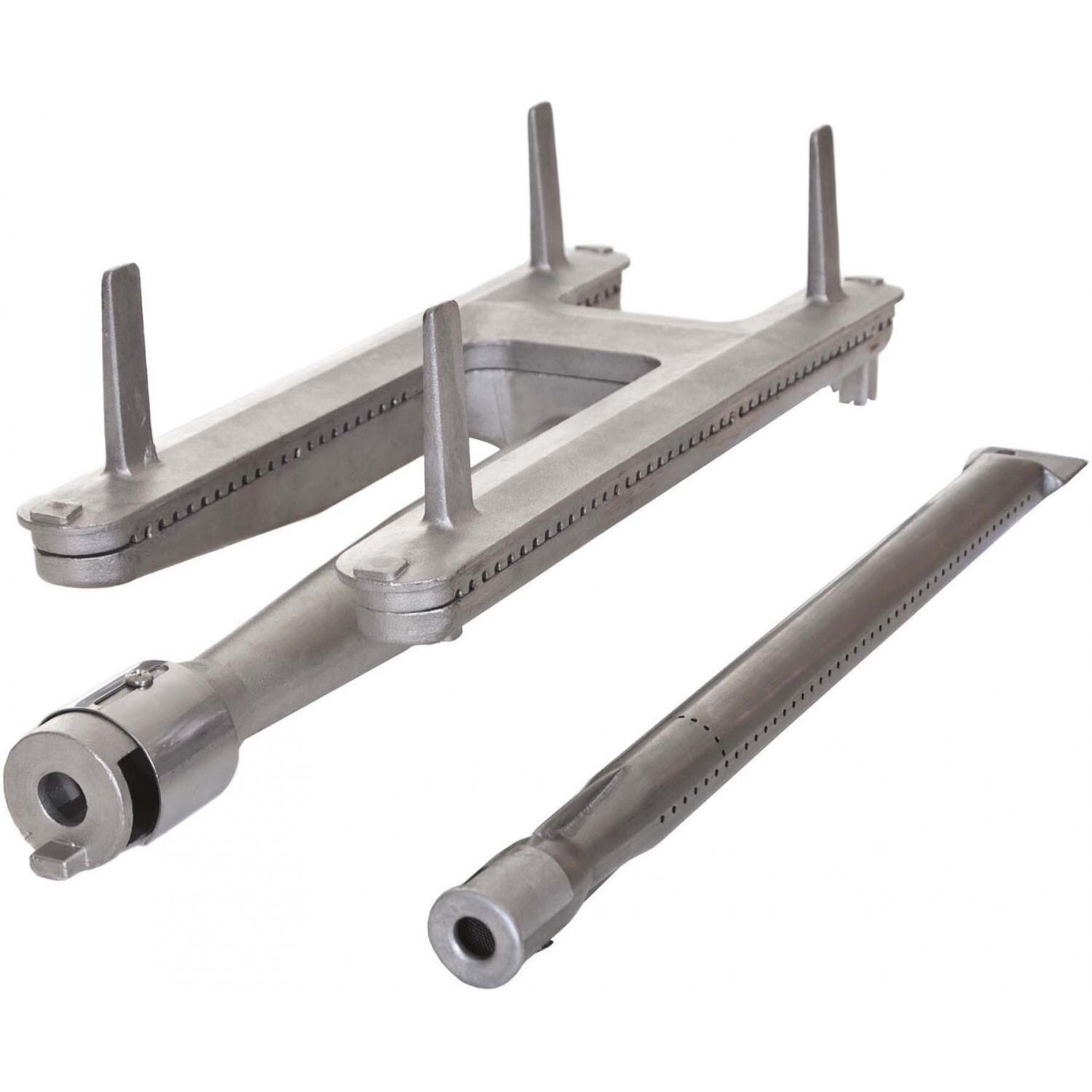

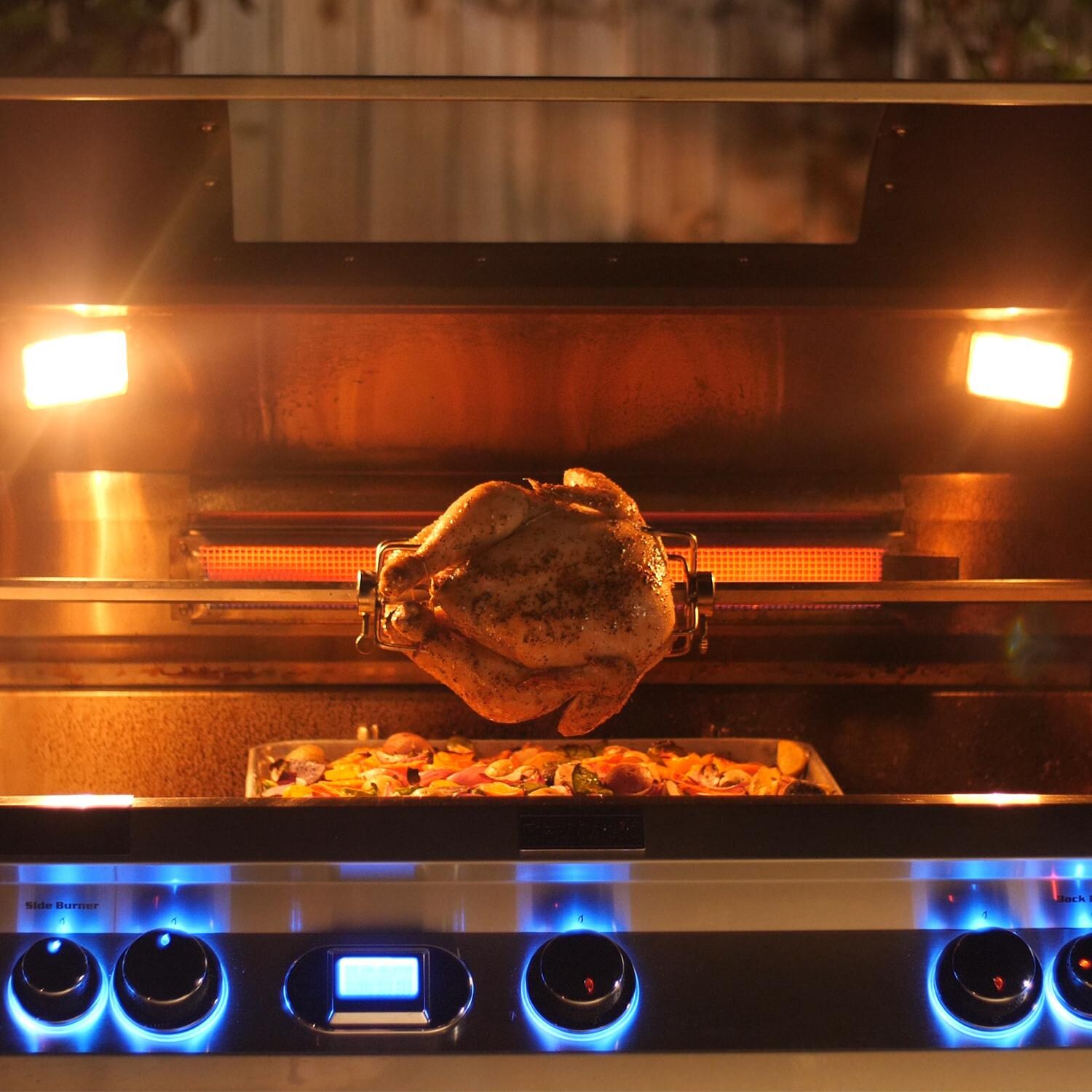

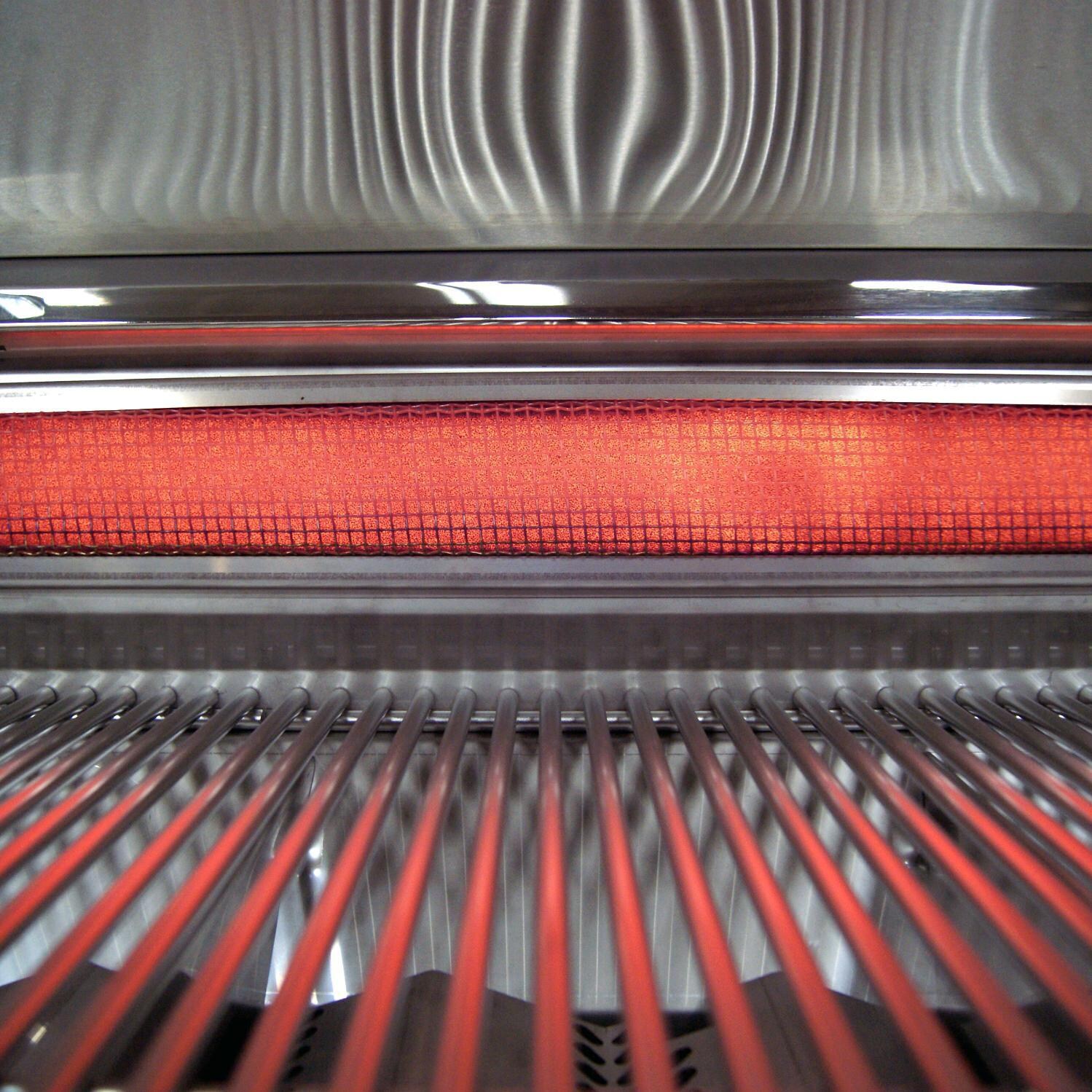

When only the best will do, Fire Magic offers the Echelon Diamond series, combining the ultimate in performance, beauty and innovation. Crafting American-made premium grills for over 75 years, Fire Magic is dedicated to providing their customers with a quality outdoor cooking experience. This Fire Magic Echelon built-in gas grill features 304 stainless steel construction for lasting quality, and modern styling with a sleek, contoured control panel. It comes with a spring-assisted, double-walled tear-drop hood, a removable warming rack, a 12V electric hot surface ignition with flash tube back-up and a 12 inch deep firebox for complete convection cooking. Also included is a magic view window built-in to the hood allowing you to monitor your food without losing any heat. The one main infrared and two main cast stainless steel E burners produce a total of 78,000 BTUs on the grilling surface, and the Diamond Sear cooking grids provide an ample 660 square inches of grilling area. This grill also features an 11,000 BTU stainless steel Quantum rotisserie burner with rotisserie kit, which heats up quicker than other rotisserie burners and is designed to direct heat only to the food and not the rest of the grill. The grill also comes with a stainless steel charcoal/smoker basket for adding wood-fired flavor to your food.Included with the grill is an easy-to-read analog grill top thermometer and heat zone separators that allow you to cook at different temperatures across the grilling surface. The angled 12V halogen oven lights and back-lit knobs make cooking at night simple and fun. This grill also features rear storage for your rotisserie kit and warming rack when not in use. Cleaning the grill is easy with the included grid lifter and the disposable drip pan collection system that is designed to prevent grease pan flare-ups. This grill comes assembled on a stainless steel cart with dual storage doors, dual storage drawers and two fold down solid shelves with towel bars. The cart includes a 30,000 BTU double side burner flush mounted next to the grill. Also included on the cart is a folding multi-tool holder, folding paper towel holder, and four locking casters. The Echelon Diamond requires a 110V power source to work properly and a wiring harness protects wiring from the heat of the grill. Each Echelon Diamond grill comes with a getting started DVD to make using your grill easy and fun.
Legal disclaimers and warnings
Product packaging, owners’ manuals, installation instructions, and/or operating instructions may include more information than what is shown on our website. The content on our site is intended to be used for reference purposes only. Please fully read all included manuals and documentation before installing or using this product. WARNING for California residents: this product may contain chemical(s) known to the state of California to cause birth defects, cancer, or other reproductive harm.
- Model Number
|Gas Grill Class||Luxury|
|Collection||Echelon Diamond (A Series)|
|Exterior Material||Stainless Steel|
|Exterior Stainless Grade||304 Stainless Steel|
|Number Of Main Burners||3 Burners|
|Grilling Surface BTUs||78000|
|Infrared Main Burner||One Infrared|
|Main Burner Material||304 Cast Stainless Steel + Ceramic Infrared|

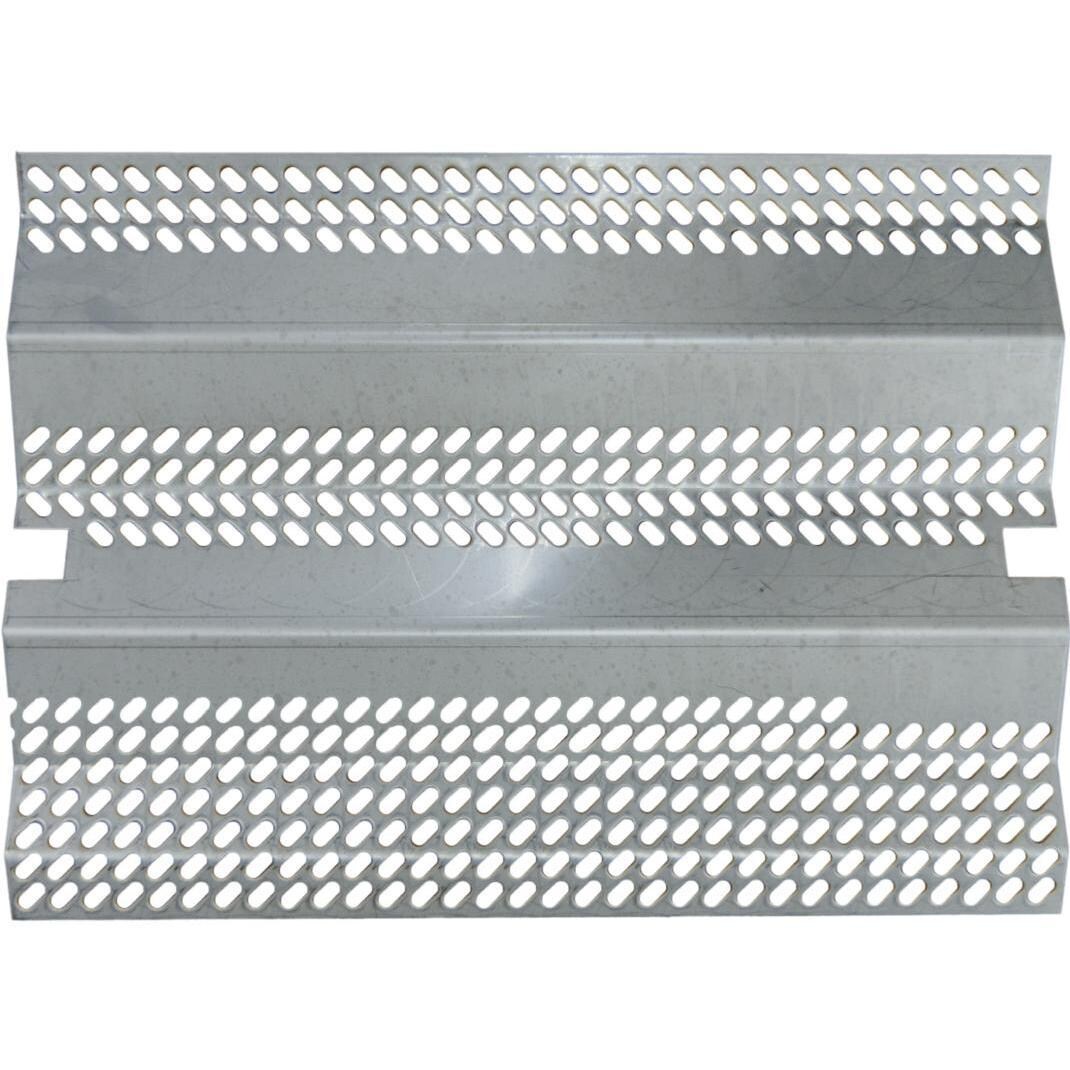

|Flame Tamer Material||Stainless Steel|
|Cooking Grate Material||Stainless Steel|
|Cooking Grid Dimensions||30 X 22"|
|Main Grilling Area||660 sq. inches|
|Secondary Grilling Area||240 Sq. Inches|
|Total Grilling Area||900 Sq. Inches|
|Rotisserie Burner BTUs||11000|

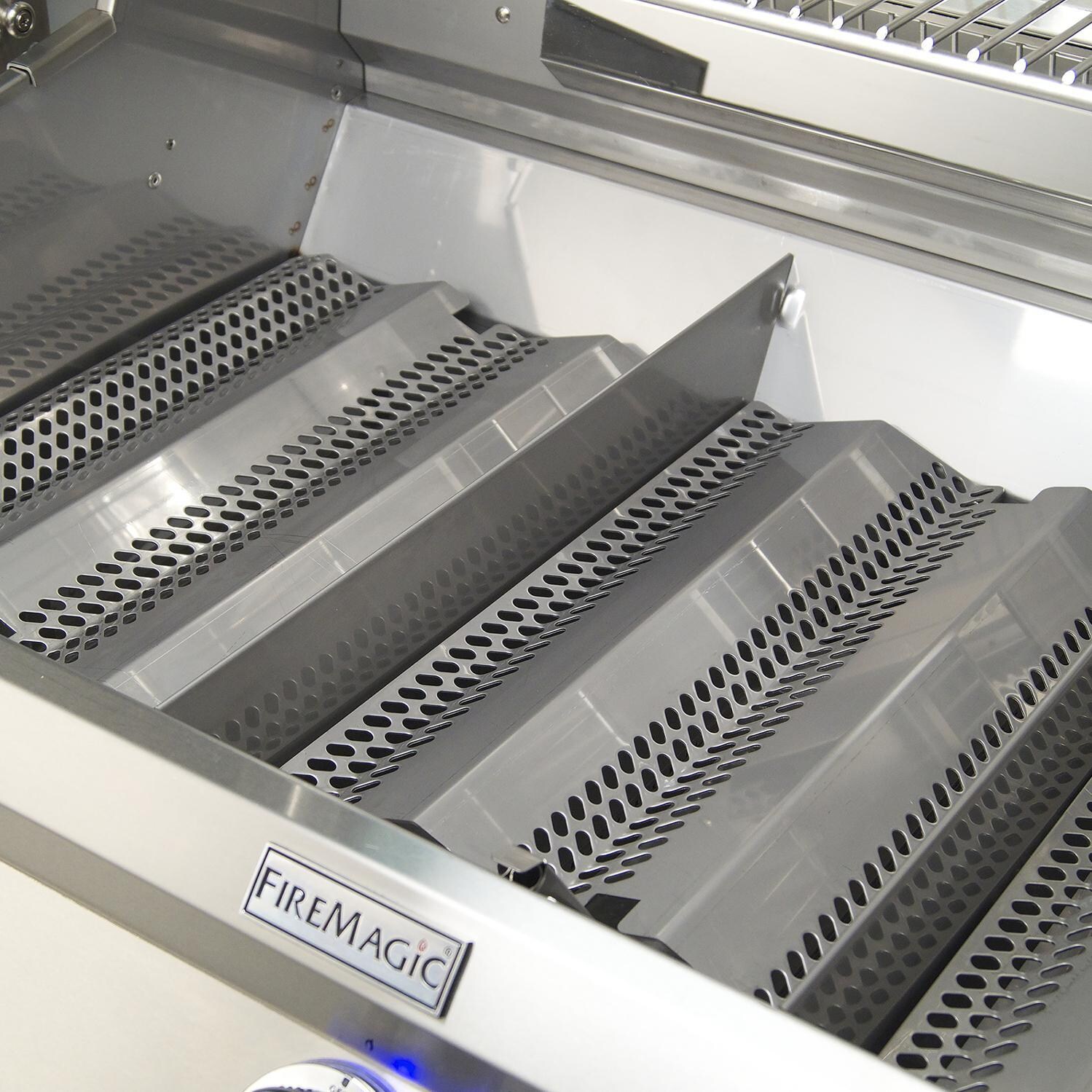

|Heat Zone Separators||Yes|

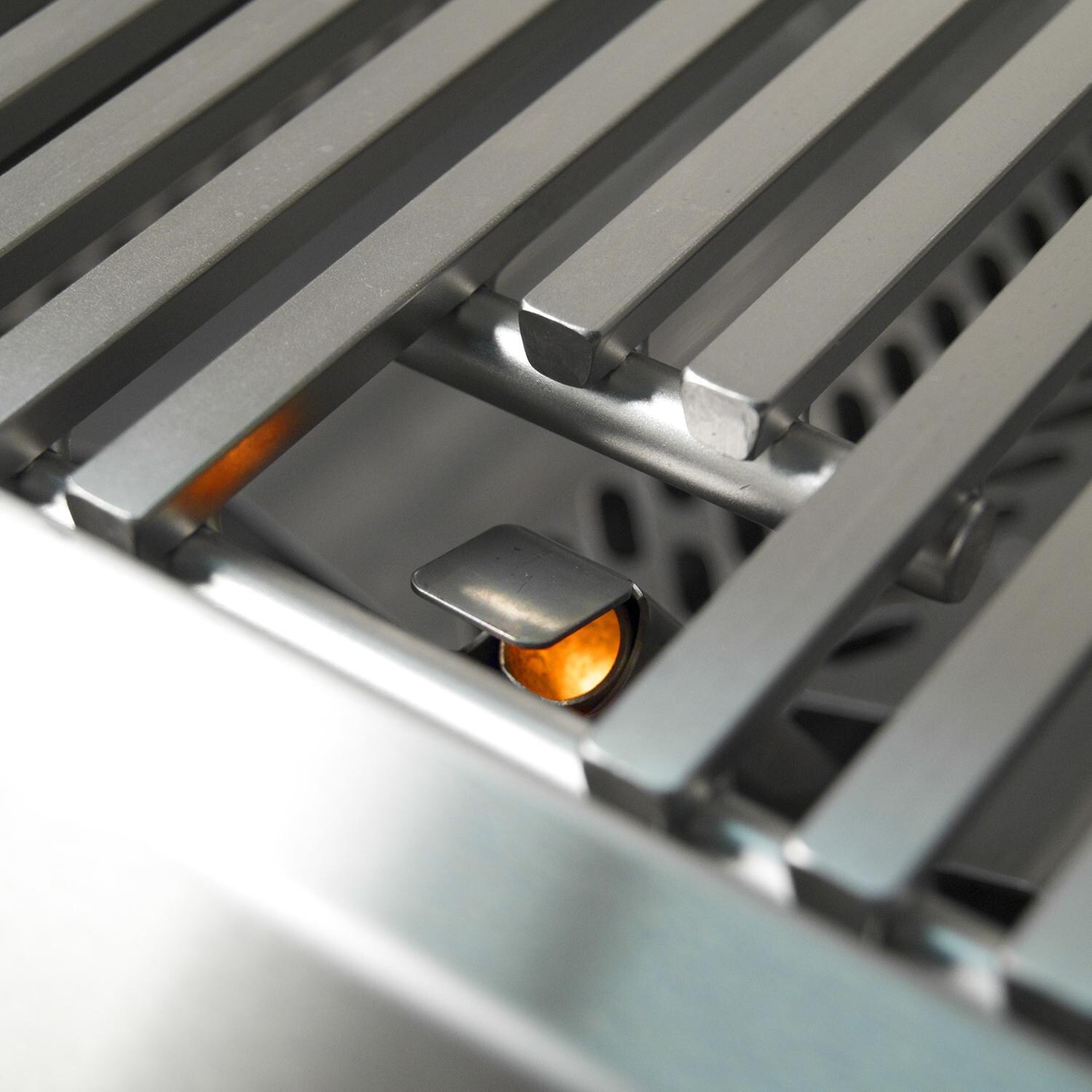

|Ignition Type||Hot Surface|
|Grill Lights||Internal / External|
|Spring Assisted Hood||Yes|

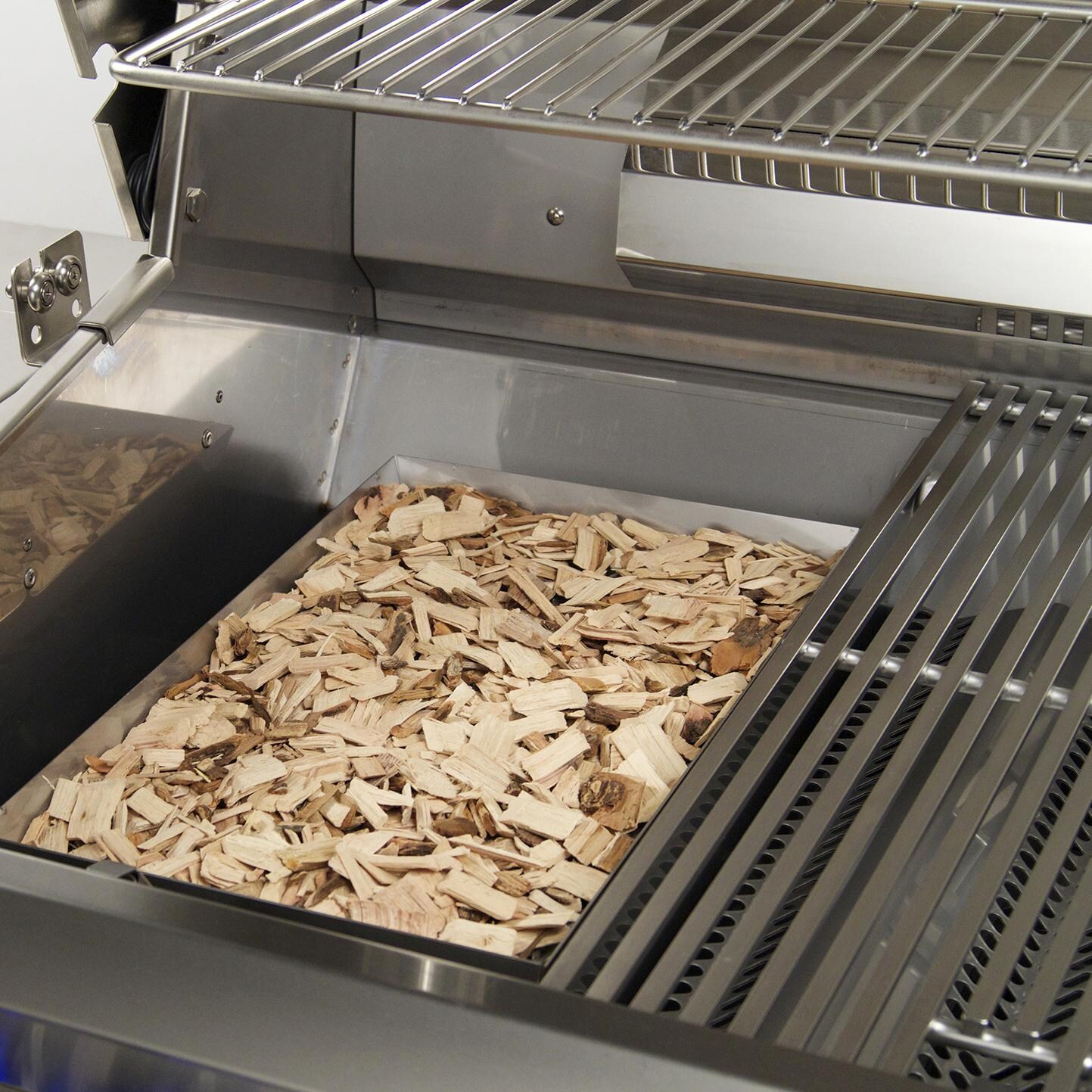

|Includes Smoker Box||Yes|
|Side Shelf Material||Stainless Steel|
|Side Burner Type||Side Burner|
|Total Side Burner BTUs||30000|
|Made In USA||Yes|
|Hose / Regulator Included||Yes|
Learning CenterBack to Top
WarrantyBack to Top
Fire Magic provides a lifetime warranty for cast stainless burners, stainless cooking grids and housings. Stainless flame tamers are warranted for five years, all other components (except ignition and electronic parts) for three years, ignition systems (except batteries) and electronic components (including lights & thermometers) for one year. A limited one year labor warranty covers repairs up to $95. In a multi-user setting (excluding commercial use) this grill is warranted to be free from defects in material and workmanship for the stainless grill housing, burners, cooking grates, brass valves, inner lines and manifold assemblies for five years, all other components (except batteries) are warranted for one year.
