Product Info Guide
- Safety pilot kit is divided into two parts, the gas valve box and the switch box
- Three-button remote has an on, off, and continuous pilot on/off function
- Place one box on each side of your burner pan to help center your gas log set
- Designed for use with 18 to 30 inch gas log sets
- Kit includes: Valve box, Switch box, Installation instructions, RS-1A Heat Shield, Transmitter (Remote), Damper Clamp, 4 AA Batteries, 1 12-Volt Battery, and Flex Connector

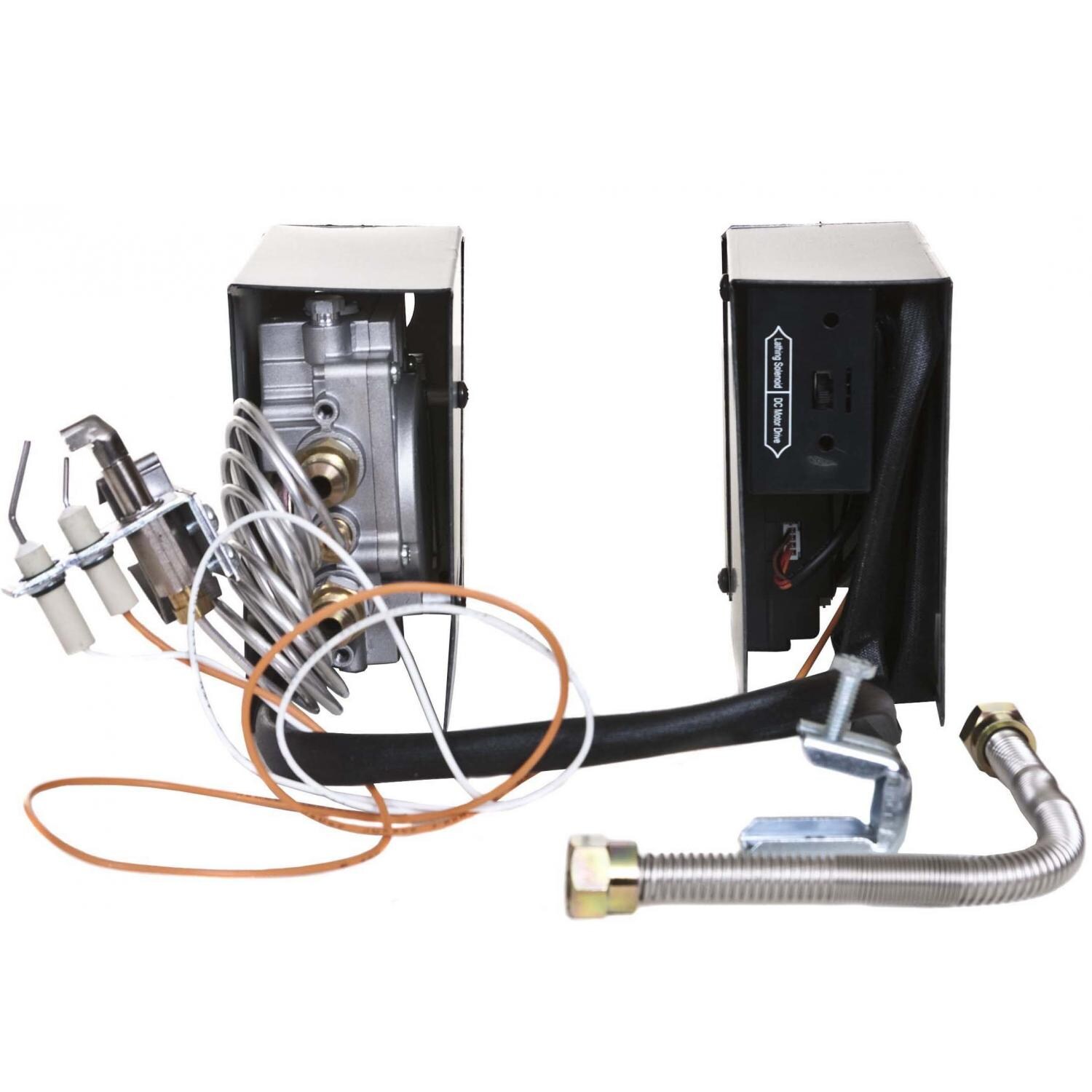

This Skytech Safety Pilot Kit is designed to provide a safe, reliable, user-friendly remote control system for your gas heating appliances. This kit is intended for indoor use on 18 to 30-inch vented natural gas log sets only. Kit has a three-button remote with on, off, and continuous pilot on/off function. All proper clearances must be observed, and installation should be performed by a qualified technician. This safety pilot kit is divided into two pre-assembled and ready-to-install sections, the gas valve box and the switch box. Place each box on separate sides of your gas log burner pan. The remote control receiver for this split series kit is part of the control module. The two boxes are connected with a hi-temperature wiring harness, and are designed to make it easier to center your gas log set. This AFVK-SP Series valve kit has a 100,000 maximum BTU capability. An optional propane conversion kit is available and sold separately. It is recommended that a qualified professional check your heating system (valve operation, pilot operation, switch operation, damper operation, and visual check of the burner and gas connections for leaks) once a year. Kit includes: Valve box, Switch box, Installation instructions, RS-1A Heat Shield, Transmitter (Remote), Damper Clamp, 4 AA Batteries, 1 12-Volt Battery, and Flex Connector. The three-button remote has an on, off, and continuous pilot on/off function. Dimensions (in inches): 5 3/4 D X 2 3/4 W X 5 3/4 H.
Legal disclaimers and warnings
Product packaging, owners’ manuals, installation instructions, and/or operating instructions may include more information than what is shown on our website. The content on our site is intended to be used for reference purposes only. Please fully read all included manuals and documentation before installing or using this product. WARNING for California residents: this product may contain chemical(s) known to the state of California to cause birth defects, cancer, or other reproductive harm.
- Model Number
|Control Functions||On/Off Only|
|Control Type||Hand Held|
Learning CenterBack to Top
WarrantyBack to Top
American Flame warrants the AFVK-SP, AFVK-SP-H/L, or AFVK-SP-MH/L Valve Kit for 12 months from the date of purchase or installation to the original purchaser to be free from defects in materials and workmanship. Damage to the AFVK-SP, AFVK-SP-H/L, or AFVK-SP-MH/L Valve Kit caused by accident, misuse, abuse, or installation error, whether preformed by a contractor, Service Company, or owner, is not covered by this warranty.
Refer to manufacturers manual for full warranty details.
